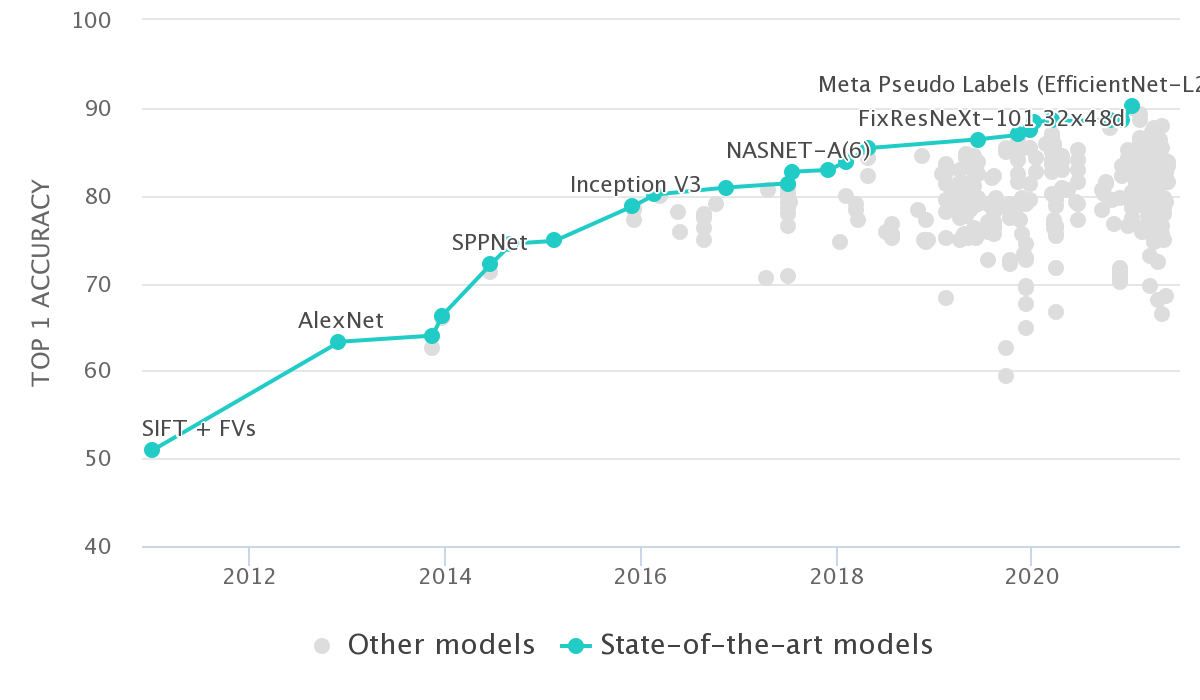

class: center, middle, inverse, title-slide # Introduction to Deep Learning ## Foundational Computational Biology II ### Kieran Campbell ### Lunenfeld Tanenbaum Research Institute & University of Toronto ### 2021-05-28 (updated: 2022-04-04) --- class: inverse # What we'll cover 1. Feed forward neural networks 2. Training neural nets: backpropagation 3. Convolutional neural networks 4. Recurrent neural networks 5. Autoencoders revisited --- # Image classification ![imagenet-benchmarks](deep-learning-figs/chart.png) .footnote[ https://paperswithcode.com/sota/image-classification-on-imagenet ] --- # The perceptron The perceptron [Ros58] early example of "biologically inspired" learning Predict a binary output given input `\(x\)` via $$ f(\mathbf{x})=\left \\{ `\begin{aligned} 1 & \text{ if } \mathbf{w}\cdot \mathbf{x}+b > 0, \\ 0 & \text{ otherwise} \end{aligned}` \right. $$ * `\(f(x)\)` classifies sample as 0 or 1 depending on `\(x\)` * Iteratively adjust `\(w\)`, `\(b\)` to get `\(f(x)\)` to match ground truth on a training dataset --- # Linear decision boundary .center[ <img src="https://upload.wikimedia.org/wikipedia/commons/thumb/8/8a/Perceptron_example.svg/1024px-Perceptron_example.svg.png" width=50%> ] .footnote[ Elizabeth Goodspeed, CC BY-SA 4.0 , via Wikimedia Commons ] --- # Multi-layer perceptrons Previously: -- $$ f(\mathbf{x})=\left \\{ `\begin{aligned} 1 & \text{ if } \mathbf{w}\cdot \mathbf{x}+b > 0, \\ 0 & \text{ otherwise} \end{aligned}` \right. $$ -- Rather than compare `\(f(x)\)` to our ground-truth, use it as input to a second function: $$ g(\mathbf{x})=\left \\{ `\begin{aligned} 1 & \text{ if } v f(\mathbf{x}) + c > 0, \\ 0 & \text{ otherwise} \end{aligned}` \right. $$ * Typically use multiple `\(f\)`s as input * Now want to adjust `\(\mathbf{w}\)`, `\(\mathbf{b}\)`, `\(v\)`, `\(c\)` to make `\(g(x)\)` as close to output as possible -- Remember (from ACB-I) want to minimize `\(\mathrm{LOSS}(\mathbf{y}, g(\mathbf{x}))\)` --- # Activation functions In the perceptron the output of each layer is set to 0 or 1: $$ f(\mathbf{x})=\left \\{ `\begin{aligned} 1 & \text{ if } \mathbf{w}\cdot \mathbf{x}+b > 0, \\ 0 & \text{ otherwise} \end{aligned}` \right. $$ Many possible _activation functions_ with appealing properties: .center[ <img src="deep-learning-figs/activation-functions.png" width=85%> ] .footnote[ https://en.wikipedia.org/wiki/Activation_function ] --- # DNNs visualized .center[ <img src="deep-learning-figs/dnn.png" width=85%> ] Figure: [KG19] --- background-image: url('intro-ml_figs/mountain.jpg') background-position: center background-size: contain class: inverse # Gradient descent You're at the top of a mountain, it's getting dark, and you need to get down -- * Your position `\((x,y)\)` is your parameter space `\((w,b)\)` to explore -- * Your height is your loss you want to minimize -- ## Q: What's the strategy? -- Take successive little steps downhill until things flatten out -- ## Local optimality Note this doesn't guarantee you to get to the _bottom_, only to a much flatter region <svg viewBox="0 0 448 512" xmlns="http://www.w3.org/2000/svg" style="height:1em;fill:currentColor;position:relative;display:inline-block;top:.1em;"> [ comment ] <path d="M190.5 66.9l22.2-22.2c9.4-9.4 24.6-9.4 33.9 0L441 239c9.4 9.4 9.4 24.6 0 33.9L246.6 467.3c-9.4 9.4-24.6 9.4-33.9 0l-22.2-22.2c-9.5-9.5-9.3-25 .4-34.3L311.4 296H24c-13.3 0-24-10.7-24-24v-32c0-13.3 10.7-24 24-24h287.4L190.9 101.2c-9.8-9.3-10-24.8-.4-34.3z"></path></svg> Big problem depending on shape of your mountain / loss function --- # What is downhill? > successive little steps downhill -- .pull-left[ Consider `\(y=(x-1)^2\)`, `\(\frac{\mathrm{d}y}{\mathrm{d}x} = 2(x-1)\)` ] .pull-right[ <img src="22-deep-learning_files/figure-html/unnamed-chunk-2-1.png" style="display: block; margin: auto;" /> ] -- Notice: * When `\(x > 1\)` we want to go to the _left_ and `\(\frac{\mathrm{d}y}{\mathrm{d}x} > 0\)` * When `\(x < 1\)` we want to go to the _right_ and `\(\frac{\mathrm{d}y}{\mathrm{d}x} < 0\)` The sign of the gradient always points uphill! --- # Gradient descent This suggests an iterative scheme: 1. Initialize some values for `\((w,b)\)` -- 2. For a given number of steps: * Update `\(w \leftarrow w - \epsilon \frac{\partial}{\partial w} \mathrm{LOSS(f(\mathbf{x}), \mathbf{y}; w, b)}\)` * Update `\(b \leftarrow b - \epsilon \frac{\partial}{\partial b} \mathrm{LOSS(f(\mathbf{x}), \mathbf{y}; w, b)}\)` -- 3. Monitor `\(\mathrm{LOSS(f(\mathbf{x}), \mathbf{y}; w, b)}\)` - if it "levels off" we can end with the optimal values `\((w,b)\)` -- ## Learning rate `\(\epsilon>0\)` is known as the _learning rate_ or _step size_. * Important parameter to tune: too large and you overshoot, too small and it's inefficient --- # Backpropagation in one slide To use gradient descent to train our neural network we need to compute `$$\frac{\partial}{\partial \theta_i} \mathrm{LOSS}(f(\mathbf{x}), \mathbf{y}; \mathbf{\theta})$$` where `\(\mathbf{\theta}\)` are all the parameters of the neural network -- .pull-left[ _Backpropagation_ is an efficient way of computing these derivatives using the chain rule and storing intermediate values Recall chain rule: if `\(y = g(f(x))\)` then `\(\frac{dy}{dx} = \frac{d g}{d f}\frac{df}{dx}\)` Deep NNs often composition of functions, e.g. `$$\text{LOSS}(\text{activation}(\text{linear}(\textbf{x})))$$` ] .pull-right[ ![test](https://colah.github.io/posts/2015-08-Backprop/img/tree-backprop.png) .footnote[ https://colah.github.io/posts/2015-08-Backprop/ ] ] --- # Deep neural networks for imaging data Images are large! CIFAR-10 dataset has "small" images (32x32x3) <svg viewBox="0 0 448 512" xmlns="http://www.w3.org/2000/svg" style="height:1em;fill:currentColor;position:relative;display:inline-block;top:.1em;"> [ comment ] <path d="M190.5 66.9l22.2-22.2c9.4-9.4 24.6-9.4 33.9 0L441 239c9.4 9.4 9.4 24.6 0 33.9L246.6 467.3c-9.4 9.4-24.6 9.4-33.9 0l-22.2-22.2c-9.5-9.5-9.3-25 .4-34.3L311.4 296H24c-13.3 0-24-10.7-24-24v-32c0-13.3 10.7-24 24-24h287.4L190.9 101.2c-9.8-9.3-10-24.8-.4-34.3z"></path></svg> 32x32x3 = 3072 weights for each neuron in input layer -- A biologically-inspired solution to this is **convolutional neural networks** (CNNs) -- 1. **Convolutional layer** Scans a set of learnable filters across the image -- 2. **Pooling layer** Spatially downsamples / pools output -- 3. **Fully connected layer** Computes output probabilities (similar to feed forward network) --- # Convolutional layer .pull-left[ .center[ <img src="deep-learning-figs/convolution.gif" width=100%> ] ] .pull-right[ ### Key hyperparameters: * Width, height * Stride (how big a step do you take?) * How many features? ] .footnote[ <sup>https://www.coursera.org/learn/convolutional-neural-networks/home/</sup> ] --- # (Max) pooling layer .center[ <img src="deep-learning-figs/maxpooling.png" width=70%> ] * Reduces dimensionality via local aggregation * Multiple variations depending on aggregation operation (max, mean) .footnote[ <sup>https://en.wikipedia.org/wiki/File:Max_pooling.png</sup> ] --- # What do CNNs learn? .center[ <img src="deep-learning-figs/Yosinski.png" width=60%> ] .footnote[ [Yos+15] ] --- # Image augmentation The meaning of images are subject to a set of _invariances_ **Example**: A photo of a chair upside-down is still a chair -- One strategy is to feed augmented training data in to reflect these invariances (rotations, translations, altered colouring, skew,...) -- .center[ <img src="deep-learning-figs/3x/mooseML@3x.png" width=80%> ] --- # Deep neural networks for temporal data Often data is has inherent ordering, e.g.: * Time series data * Textual data Can represent this via `\(y_t\)` for `\(t=1,\ldots,T\)` -- Typical task is to predict future values given past -- .center[ <img src="deep-learning-figs/sepsis.png" width=70%> ] .footnote[ <sup>[Fle+20]</sup> ] -- ### Why might a standard (feed forward) net not work so well here? --- # Recurrent neural networks Time dependent input-output pairs `\((x_t, y_t)\)` for `\(t=1,\ldots,T\)`, e.g.: * `\(x\)` = english words, `\(y\)` = french words <svg viewBox="0 0 448 512" xmlns="http://www.w3.org/2000/svg" style="height:1em;fill:currentColor;position:relative;display:inline-block;top:.1em;"> [ comment ] <path d="M190.5 66.9l22.2-22.2c9.4-9.4 24.6-9.4 33.9 0L441 239c9.4 9.4 9.4 24.6 0 33.9L246.6 467.3c-9.4 9.4-24.6 9.4-33.9 0l-22.2-22.2c-9.5-9.5-9.3-25 .4-34.3L311.4 296H24c-13.3 0-24-10.7-24-24v-32c0-13.3 10.7-24 24-24h287.4L190.9 101.2c-9.8-9.3-10-24.8-.4-34.3z"></path></svg> translation * `\(x\)` = image, `\(y\)` = caption <svg viewBox="0 0 448 512" xmlns="http://www.w3.org/2000/svg" style="height:1em;fill:currentColor;position:relative;display:inline-block;top:.1em;"> [ comment ] <path d="M190.5 66.9l22.2-22.2c9.4-9.4 24.6-9.4 33.9 0L441 239c9.4 9.4 9.4 24.6 0 33.9L246.6 467.3c-9.4 9.4-24.6 9.4-33.9 0l-22.2-22.2c-9.5-9.5-9.3-25 .4-34.3L311.4 296H24c-13.3 0-24-10.7-24-24v-32c0-13.3 10.7-24 24-24h287.4L190.9 101.2c-9.8-9.3-10-24.8-.4-34.3z"></path></svg> image captioning -- RNNs compute a hidden state `\(h_t\)` that's a function of `\(x_t\)` and `\(h_{t-1}\)` `\(h_t = g_1(x_t, h_{t-1})\)` `\(y_t = g_2(h_t)\)` .center[ <img src="deep-learning-figs/rnn.png" width=70%> ] .footnote[ <sub>Figure: [Sch19]</sub> ] --- class: middle, inverse ### Example: predict next character in sequence .center[ <img src="http://karpathy.github.io/assets/rnn/charseq.jpeg" width=60%> ] .foonote[ Figure: http://karpathy.github.io/2015/05/21/rnn-effectiveness/ ] --- class: middle, inverse .center[ <img src="http://karpathy.github.io/assets/rnn/diags.jpeg" width=100%> ] .foonote[ Figure: http://karpathy.github.io/2015/05/21/rnn-effectiveness/ ] --- # More recent developments in sequence modelling ## Long short term memory networks (LSTMs, [HS97]) * Allow for long range dependencies * Fantastic blog post: https://colah.github.io/posts/2015-08-Understanding-LSTMs/ ## Transformer models * Use _attention_, a form of adaptive input weighting * Modern examples applied to language include GPT, BERT --- # Deep learning in genomics Many applications including 1. Predicting sequence specificity of DNA binding proteins 2. Predict methylation based on genome topology, DNA sequence 3. Predict expression from sequence Good intro reading: [Zou+19] -- ## In practice... Deep neural networks are **universal function approximators** Consequently, they are **data hungry** Think `\(>1000\)` samples before reaching for a DNN --- # References These slides: [camlab.ca/teaching](https://www.camlab.ca/teaching) <small> Fleuren, L. M., T. L. Klausch, C. L. Zwager, et al. (2020). "Machine learning for the prediction of sepsis: a systematic review and meta-analysis of diagnostic test accuracy". In: _Intensive care medicine_ 46.3, pp. 383-400. Hochreiter, S. and J. Schmidhuber (1997). "Long short-term memory". In: _Neural computation_ 9.8, pp. 1735-1780. Kriegeskorte, N. and T. Golan (2019). "Neural network models and deep learning". In: _Current Biology_ 29.7, pp. R231-R236. Rosenblatt, F. (1958). "The perceptron: a probabilistic model for information storage and organization in the brain." In: _Psychological review_ 65.6, p. 386. Schmidt, R. M. (2019). "Recurrent neural networks (rnns): A gentle introduction and overview". In: _arXiv preprint arXiv:1912.05911_. Yosinski, J., J. Clune, A. Nguyen, et al. (2015). "Understanding neural networks through deep visualization". In: _arXiv preprint arXiv:1506.06579_. Zou, J., M. Huss, A. Abid, et al. (2019). "A primer on deep learning in genomics". In: _Nature genetics_ 51.1, pp. 12-18. </small>
